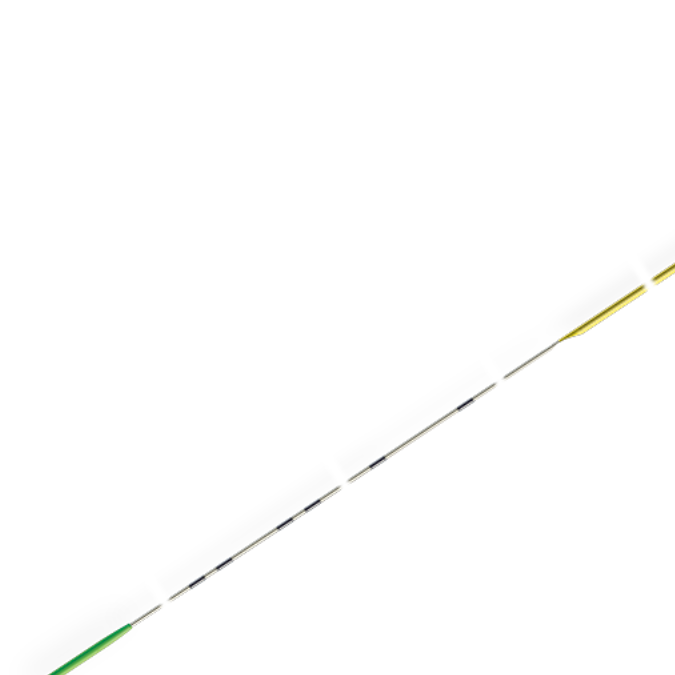

ShapeIT™

Rapid-exchange microcatheter for side-branch access

ShapeIT by IMDS supports guidewire access to side branches. Its 180-degree pre-shaped distal end and shapeable distal two centimetres allow adaptation to bifurcation anatomy.

Manufacturer information Contact EUKON

  • Steering and access

    A 1:1 torque response supports controlled guidewire navigation. The tapered tip and small distal profile support side-branch crossing.

    Technical specifications

    • Guidewire: 0.014 inch (0.36 mm)
    • Lesion entry profile: 0.57 mm / 1.7F
    • Reinforced shaft with tapered soft tip
    • Distal hydrophilic coating: 12 cm
    • Distal shaft length: 15 cm
    • Required guide catheter: 5F
    • Article number: SI014135
    • Shapeable distal end for side-branch access
    • Rapid-exchange design with 1:1 torque response
