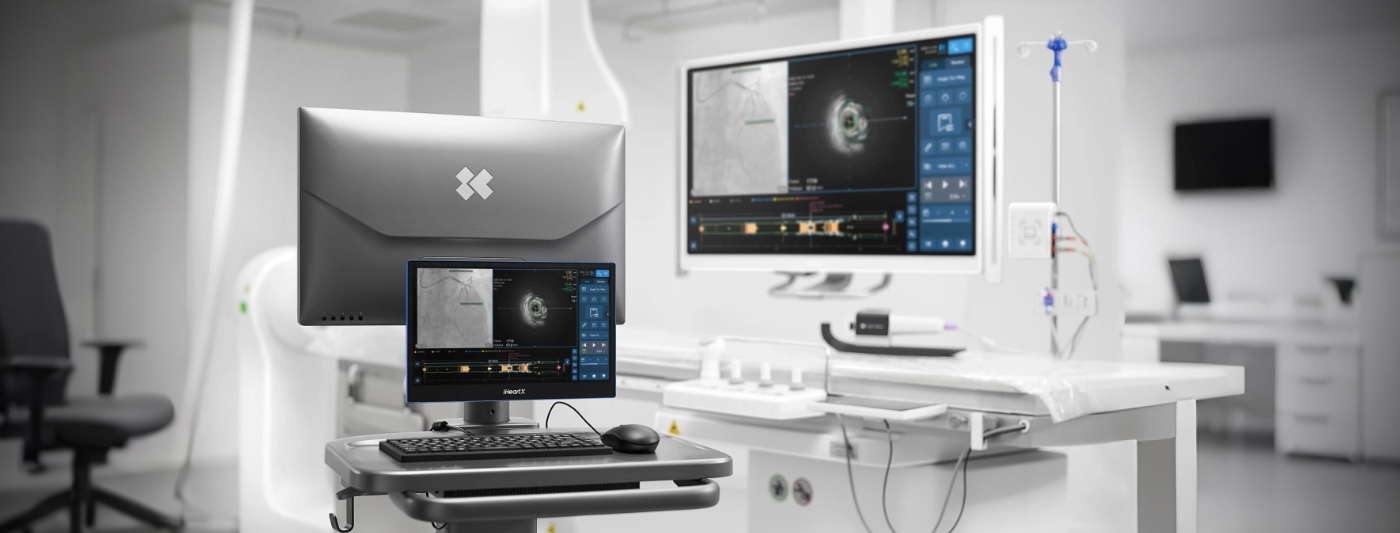

iHeartX™ by Insight Lifetech combines high-definition IVUS imaging and fractional flow reserve (FFR) in one workstation for anatomical and physiological assessment throughout PCI.
Manufacturer brochure (EN) →
Insight Lifetech · IL-IHE-V1.0-20260204; copyright 2026
iHeartX IVUS/FFR platform; page 2 features TruePhysio X wireless pressure microcatheter.

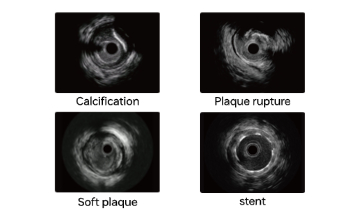

iHeartX combines high-definition IVUS and coronary physiology in one workstation. Its TRUEVISON™ imaging catheters offer 40/60 MHz, five pullback speeds (0.5, 1, 3, 5 and 10 mm/s) and a 150 mm pullback length.

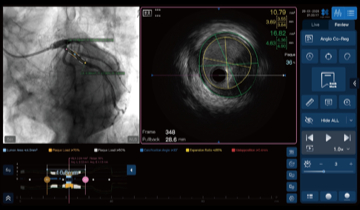

Easy Go 2.0 combines co-registration and automatic edge detection. It maps lesion distribution and calculates mean lumen and vessel diameters. Automated analysis also identifies calcium, minimum lumen area (MLA), plaque burden and side branches.

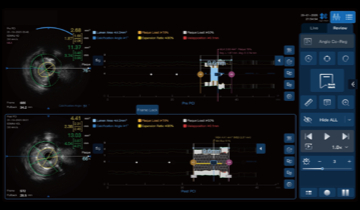

After stenting, the software recognises the stent and calculates minimum stent area (MSA) and expansion ratio. It also provides malapposition alerts. These are manufacturer-described analysis capabilities for clinician review.
TruePhysio™ X is the wireless rapid-exchange pressure microcatheter described for iHeartX. Its 1.56F in-lesion profile runs over any 0.014 inch guidewire. The catheter incorporates two temperature sensors and a radiopaque marker for depth localisation.
The software checks for Pa drops or artefacts, residual contrast, sensor contact with the vessel wall and maximal hyperaemia status.
The software calculates changes in distal pressure, FFR and cRR (ΔPd / ΔFFR / ΔcRR) along pullback curves and offers virtual stent simulation for planning.
Ask to see a complete, anonymised example rather than a single selected image. Bring the questions your team needs to answer:
Software output supports the discussion; it does not select a treatment or guarantee an outcome. Use an equipment demonstration to assess the workflow. Decisions for an individual patient remain with the treating team.
Before ordering, tell EUKON which equipment is installed, who will use it and which functions matter to your service. Request confirmation of the catheter references, installed software and local availability of the proposed features.
For an existing physiology service, ask specifically about the upgrade path. The original TruePhysio and VivoCardio product names do not establish compatibility with the TruePhysio X / iHeartX configuration.
Arrange a demonstration around your team’s questions and a separate hands-on Education session for preparation and operation. Clinical setup and acquisition must follow the supplied, applicable IFU.
For purchasing teams, include staff training, consumable references and support arrangements in the evaluation, so the demonstration answers operational as well as clinical questions.
Reviewed on 6 October 2026: iHeartX manufacturer information and TruePhysio X manufacturer information.
