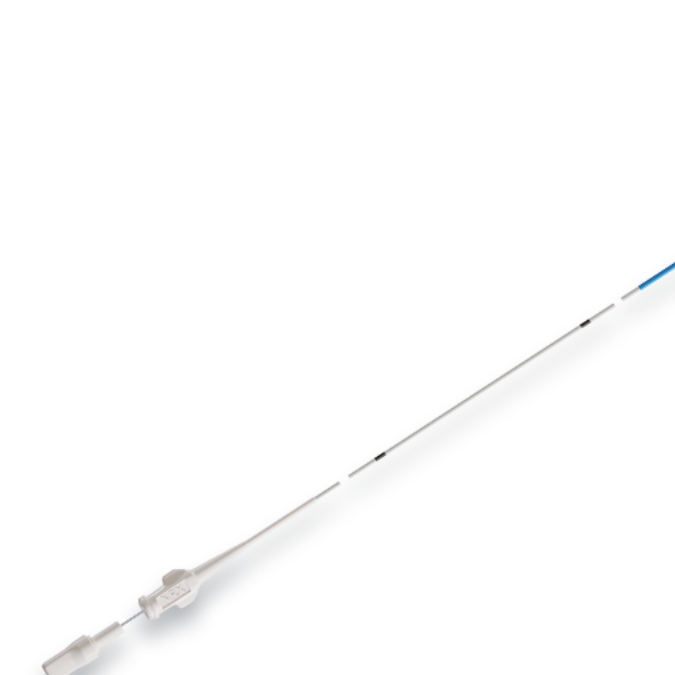

NHancer Rx™

Dual-lumen rapid-exchange microcatheter

NHancer Rx by IMDS combines a rapid-exchange delivery lumen with an additional over-the-wire lumen for dual-guidewire procedures. A reinforced shaft and removable stylet support pushability.

Manufacturer documents

Manufacturer brochure (EN) →
IMDS · ITM200207 (original manufacturer filename)

NHancer Rx™; exact manufacturer original verified.

Manufacturer information Manufacturer brochure (EN) Contact EUKON

  • Dual-guidewire support

    A proximal angled side exit port supports side-branch access. A radiopaque tip indicates the exit port; the low profile allows trapping in a 6F guiding catheter.

    Technical specifications

    • Guidewire compatibility: 0.014 inch in both lumens
    • Usable length: 135 cm
    • Proximal profile: 2.6F (0.86 mm)
    • Distal profile: 2.3F × 3.3F
    • Lesion entry profile: 1.5F
    • Required guide catheter: 5F
    • Article number: NRX1413518
    • Rapid-exchange delivery with an additional OTW lumen
    • Angled side exit port supports side-branch access
