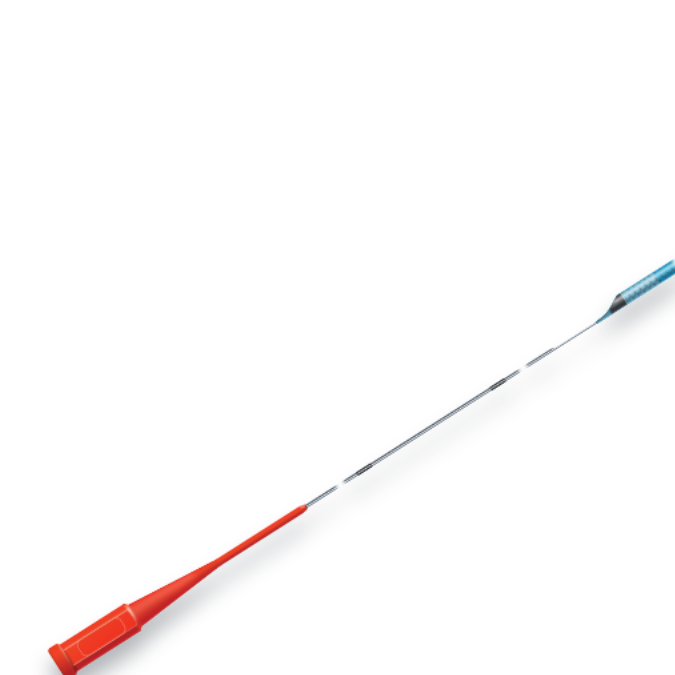

FlowGuide™

Rapid-exchange guide extension catheter

FlowGuide by IMDS extends the reach of the guiding catheter. Nine distal perfusion openings are designed to reduce pressure dampening, while a soft radiopaque tip supports positioning.

Manufacturer documents

Manufacturer brochure (EN) →
IMDS · ITM260035 (original manufacturer filename)

FlowGuide™; exact manufacturer original verified.

Manufacturer information Manufacturer brochure (EN) Contact EUKON

  • Distal perfusion and device delivery

    The distal shaft incorporates stainless-steel reinforcement for lumen integrity. An oval push rod supports pushability and delivery alongside other devices. IMDS lists IVUS compatibility among the product features.

    Technical specifications

    • Usable length: 150 cm
    • Distal shaft length: 15 cm or 25 cm according to configuration
    • Shaft material: polyether block amide
    • Flexible radiopaque tip: 1.3 mm
    • Distal hydrophilic coating: 12 cm
    • Exit markers: 95 cm and 105 cm
    • Nine distal openings support continued perfusion
    • Reinforced distal shaft supports lumen integrity
